Climb milling, also known as down milling, is a widely used machining technique in CNC operations that offers significant advantages in terms of tool life, surface finish, and material removal rates. This method involves feeding the workpiece in the same direction as the cutter’s rotation, which results in the cutting edge engaging the material at the sharpest angle. As industries continually push for higher precision, faster production times, and improved efficiency, climb milling has become an essential strategy in the arsenal of CNC machining.
What is Climb Milling?

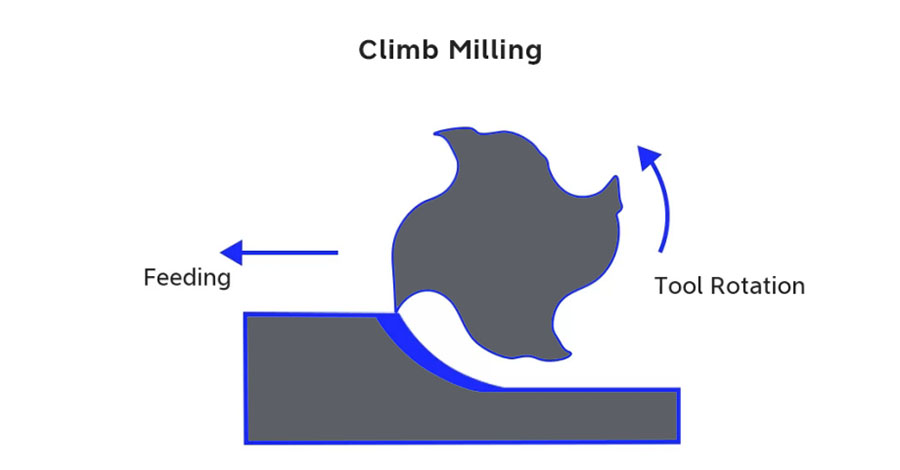

In climb milling, the cutter rotates in the same direction as the feed motion of the workpiece. As the tool advances into the material, the cutting force tends to pull the tool into the cut, with the teeth making contact with the material at the sharp edge. This technique contrasts with conventional milling, where the cutter rotates against the direction of feed, causing the tool to push against the material.
Climb milling is especially advantageous when machining softer materials and achieving superior surface finishes. In this process, the chip thickness decreases from the entrance to the exit of the cut, which results in a smoother surface finish. Additionally, the cutting forces are generally lower in climb milling, making it easier on the tool and the machine.
Key Advantages of Climb Milling
Enhanced Tool Life and Performance
One of the primary benefits of climb milling is its ability to extend tool life. Since the cutting force is directed into the material, the tool’s cutting edges experience less wear compared to conventional milling. This makes climb milling an excellent choice for operations requiring high-volume material removal, as it can prolong the lifespan of expensive cutting tools, reducing both tooling costs and downtime.
Improved Surface Finish
Climb milling typically yields a better surface finish than conventional milling. As the cutter enters the material with the sharp edge, it removes material more cleanly, reducing the likelihood of tool marks, chatter, or rough surfaces. This feature is particularly beneficial in industries such as aerospace, automotive, and medical device manufacturing, where precise and smooth surface finishes are essential.
Higher Material Removal Rates
Climb milling allows for more aggressive cutting, as the cutting force is applied in the direction of the tool’s rotation. The result is higher material removal rates and faster production speeds. This can lead to increased efficiency in high-volume production, particularly when machining large workpieces or roughing operations.
Reduced Cutting Forces and Lower Power Consumption
In climb milling, the cutting forces are reduced compared to conventional milling. The tool moves in a direction where the cutting edge enters the material in a way that minimizes resistance. This reduction in cutting force leads to less wear on the tool and reduced stress on the machine. As a result, the power consumption is lower, contributing to more energy-efficient machining.
Better Chip Removal
Climb milling helps facilitate more effective chip removal. Since the material is cut more efficiently, the chips are cleared out of the cutting area more easily, reducing the risk of chip buildup and preventing the cutter from becoming clogged. This leads to a cleaner working environment and contributes to improved machining conditions.
When to Use Climb Milling
While climb milling offers numerous advantages, it may not always be the best choice for every application. Here are some scenarios where climb milling is particularly beneficial:
When Working with Softer Materials:
Climb milling is most effective when machining softer materials such as aluminum, plastics, and low-carbon steels. The process minimizes the chances of workpiece deformation or damage.
For High Precision and Fine Surface Finish:
If the goal is to achieve a high-quality surface finish and tight tolerances, climb milling should be the preferred choice. It ensures minimal tool deflection and maintains better control over the final workpiece geometry.
High Material Removal in Roughing Operations:
When removing large amounts of material, climb milling is particularly useful. It allows operators to use higher feed rates and cutting speeds without sacrificing tool life or surface quality.
However, there are situations where climb milling should be avoided, such as:
When Machining Harder Materials:
For harder materials like hardened steels or tough alloys, climb milling can sometimes cause excessive tool wear or even tool breakage due to the higher cutting forces in the material. In these cases, conventional milling might be preferred.
For Machines with Low Rigidity:
If the CNC machine lacks rigidity, climb milling can cause chatter or vibrations because of the way the cutting forces interact with the machine. For machines that are not sufficiently rigid, conventional milling may be a more reliable choice.
Best Practices for Climb Milling
To fully capitalize on the advantages of climb milling, it is important to follow some best practices:
Tool Selection:
Choose a tool with a sharp cutting edge to ensure that the material is cut cleanly and to avoid excessive tool wear. Carbide tools are a popular choice for climb milling, particularly for high-speed operations.
Optimal Cutting Parameters:
Pay attention to the cutting speed, feed rate, and depth of cut. Since climb milling often involves higher material removal rates, adjusting these parameters can help avoid overheating the tool and ensure an optimal balance between efficiency and tool life.
Machine Rigidity:
Ensure that the CNC machine is rigid enough to withstand the forces generated during climb milling. The machine should be equipped with a stable setup to avoid vibration or chatter, which can negatively impact surface finish and tool life.
Tool Path Optimization:
Proper tool path strategy is critical in climb milling to ensure that the cutting tool enters the material smoothly. Use CNC software that can optimize tool paths to prevent excessive tool deflection or unwanted cutting force buildup.
Cooling and Lubrication:
Depending on the material being machined, ensure proper cooling or lubrication. In climb milling, it’s especially important to control the temperature to prevent thermal damage to the tool or workpiece. Using the right coolant helps maintain cutting efficiency and tool longevity.
Conclusion
Climb milling is a crucial technique in modern CNC machining that offers numerous benefits, including enhanced tool life, improved surface finishes, and higher material removal rates. By understanding when and how to use climb milling effectively, manufacturers can optimize machining operations, reduce costs, and improve overall production efficiency.
While it may not be suitable for all materials or applications, climb milling is an indispensable strategy for industries requiring precision and high-quality results. Whether it’s in aerospace, automotive, or general manufacturing, mastering climb milling can lead to more efficient and cost-effective machining processes.
By integrating the best practices for tool selection, cutting parameters, and machine setup, manufacturers can ensure that climb milling delivers optimal performance in a wide range of applications.
