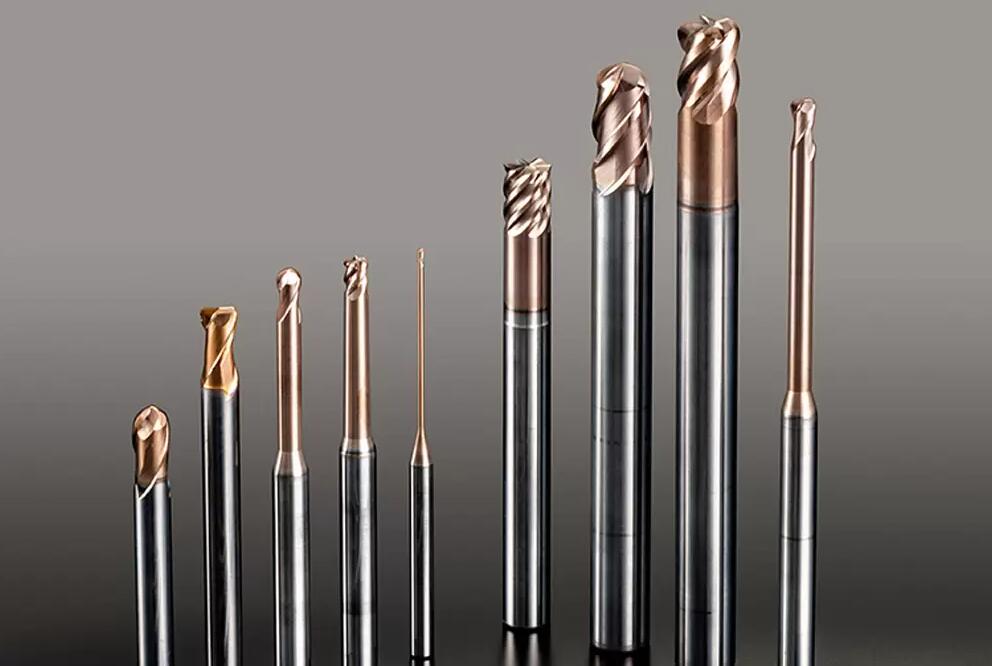

When it comes to CNC milling, choosing the right end mill for your specific application is crucial to achieving optimal performance, efficiency, and part quality. The end mill is the cutting tool responsible for removing material from the workpiece, and selecting the appropriate one can significantly affect the speed, precision, and tool life of the operation.
In this guide, we’ll walk you through the key factors to consider when selecting the right end mill for your CNC milling project.
1. Understand the Type of Cut You Need
The first step in selecting the right end mill is understanding the type of cut required for your application. There are several common types of end mills designed for different cutting operations:
Square End Mills: These are the most commonly used type of end mills and are ideal for general-purpose milling tasks. They are great for creating flat-bottomed cavities, slots, and machining the sidewalls of the material.
Ball Nose End Mills: These end mills have a rounded end, making them ideal for 3D profiling, curved surfaces, and creating smooth contours. They’re often used in mold-making, die-casting, and complex shapes.
Corner Radius End Mills: These are similar to square end mills but with a slightly rounded corner. The rounded edges help reduce stress concentration, improve surface finish, and increase tool life, making them suitable for high-speed machining and finishing cuts.
Roughing End Mills: Designed for faster material removal, roughing end mills have a special tooth design that allows them to remove material quickly while minimizing heat buildup. These are ideal for rough cuts before switching to a finishing tool.
Fly Cutters: Typically used for smoothing large surfaces, fly cutters often use a single insert or tool to mill a wide area at once, offering a smoother finish with fewer passes.
2. Material Selection
The material you’re machining plays a significant role in determining the right end mill. The tool material must be harder than the workpiece material to achieve efficient cutting. Common tool materials include:
High-Speed Steel (HSS): Offers good wear resistance and is great for cutting softer materials. It’s a more affordable option but lacks the heat resistance and durability of carbide.
Carbide End Mills: These are the most common for precision cutting due to their superior hardness, wear resistance, and ability to withstand higher temperatures. They’re perfect for hard metals like stainless steel, titanium, and hardened alloys.
Cobalt End Mills: Offering a balance between the toughness of HSS and the hardness of carbide, cobalt end mills are an excellent choice for cutting tough materials at moderate speeds.
Coated End Mills: Coatings, such as titanium nitride (TiN), titanium carbonitride (TiCN), and diamond-like coatings (DLC), increase the tool’s wear resistance and performance, especially when machining materials like stainless steel or non-ferrous metals.
3. Cutting Diameter and Length
Selecting the correct cutting diameter is essential for the desired machining operation. Smaller diameters are used for precision and fine detail, while larger diameters are suited for faster, deeper cuts.
Cutting Diameter: Choose a diameter that matches the required finish and cut depth. A larger diameter increases material removal rate but reduces the precision of the cut.
Cutting Length (Flute Length): The flute length refers to how deep the end mill can cut. A longer flute length is necessary for deeper cuts, but it can reduce tool strength and cause deflection if not handled correctly.
Overall Length: The total length of the end mill should allow sufficient clearance for the workpiece and the machine setup.
4. Flute Geometry
The number of flutes (cutting edges) on an end mill influences its cutting efficiency, chip removal, and surface finish:
2-Flute End Mills: These are ideal for cutting softer materials and provide better chip clearance, making them suitable for higher feed rates and roughing operations.
3-Flute End Mills: Often used for finishing cuts, the three-flute design provides a balance between chip removal and surface finish, especially in materials like aluminum.
4-Flute End Mills: These provide excellent surface finishes and are great for milling harder materials. However, they may have lower chip clearance compared to fewer-flute end mills.
High-Helix End Mills: These have a steeper cutting angle and are suitable for high-speed cutting. They’re often used in applications where a smooth finish is required, particularly in aluminum.
5. Coating and Surface Treatment
Coatings can enhance tool life, reduce friction, and improve heat resistance. Common coatings include:
Titanium Nitride (TiN): Offers improved hardness and wear resistance, extending tool life and allowing for higher cutting speeds.
Titanium Carbonitride (TiCN): Provides better performance than TiN, especially in harder materials and higher-speed applications.
Diamond Coatings: Used for non-ferrous materials, diamond coatings offer exceptional hardness and wear resistance, ideal for high-precision, high-volume machining.
6. Choosing the Right End Mill for Your Material
The material you’re cutting plays a crucial role in determining the best end mill to use:
Aluminum: For cutting aluminum and other non-ferrous metals, consider using high-speed steel (HSS) or carbide end mills with a high helix angle to remove chips effectively.
Steel: For mild steels, a carbide or cobalt end mill is often the best choice, with a coating to extend tool life.
Stainless Steel: Stainless steel requires a stronger tool material, like carbide or cobalt, with a wear-resistant coating to withstand the heat generated during cutting.
Titanium and Exotic Alloys: For titanium and other hard materials, a carbide end mill with a specialized coating, such as TiCN or TiAlN, is recommended due to the material’s tendency to work-harden.
7. Tool Life and Feed Rates
Selecting the right end mill also involves understanding the required tool life and feed rates for your application. Generally, carbide end mills allow for higher feed rates and longer tool life compared to HSS end mills, but they are more brittle and require careful handling.
Conclusion
Choosing the right end mill is key to achieving high-quality results in CNC milling. By considering factors such as the type of cut, material, flute geometry, and coating, you can optimize the milling process to maximize efficiency and reduce downtime. Always match the tool to the material and operation for the best results and longevity of both your tools and parts. Whether you’re working with aluminum, stainless steel, or exotic alloys, there’s a wide range of end mills available to meet your needs.
