CNC (Computer Numerical Control) milling is a versatile and precise manufacturing process used to create a wide variety of components and products. One of the key factors that significantly affects CNC milling operations is the hardness of the material being machined. Material hardness plays a critical role in determining machining parameters, tool wear, surface finish, and overall efficiency. In this post, we will explore how material hardness impacts CNC milling operations and the factors manufacturers should consider when working with materials of varying hardness levels.
What Is Material Hardness?
Material hardness refers to a material’s ability to resist deformation, penetration, or scratching under applied force. It is a crucial mechanical property that affects machinability, cutting forces, and tool life. Hardness is typically measured using scales such as Brinell (HB), Rockwell (HRC), or Vickers (HV), depending on the material and the application.
Materials are classified into three general categories based on hardness:
- Soft Materials: Examples include aluminum, plastics, and brass.
- Medium-Hard Materials: Examples include mild steel, bronze, and titanium alloys.
- Hard Materials: Examples include hardened steel, tool steel, and superalloys.

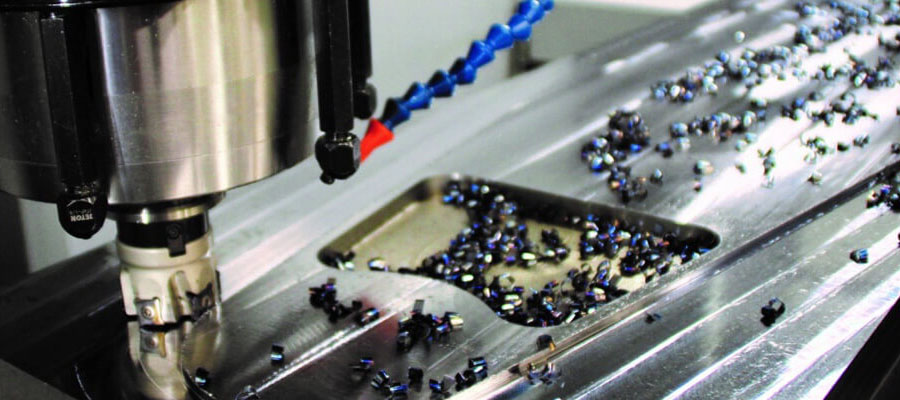

How Material Hardness Affects CNC Milling
1. Cutting Tool Selection
The hardness of the material dictates the type of cutting tool that can be used effectively:
– Soft Materials: Softer materials like aluminum and plastics can be machined with high-speed steel (HSS) or carbide tools. These materials are easier to cut and cause minimal tool wear.
– Hard Materials: For harder materials, carbide tools with coatings (e.g., titanium nitride or diamond-like carbon) or ceramic tools are required. These tools are designed to handle high temperatures and resist wear caused by cutting hard surfaces.
2. Cutting Speeds and Feed Rates
Material hardness has a direct impact on the recommended cutting speeds and feed rates:
– Soft Materials: Softer materials can be machined at higher speeds and feed rates. This allows for faster production cycles while maintaining precision.
– Hard Materials: Harder materials require slower cutting speeds and reduced feed rates to prevent tool damage and excessive heat generation. Improper settings can lead to tool breakage or poor-quality finishes.
3. Tool Wear and Tool Life
Harder materials cause greater wear on cutting tools. This happens because the cutting edges experience higher friction and heat during machining. Frequent tool changes and higher tooling costs are common challenges when working with hard materials. Selecting the right tool material and using proper cooling methods can help extend tool life.
4. Surface Finish
The hardness of the material affects the achievable surface finish:
– Soft Materials: These materials tend to produce smoother surface finishes when milled. However, care must be taken to avoid smearing or deformation due to excessive cutting forces.
– Hard Materials: Machining hard materials often results in rougher surface finishes if not properly managed. Using sharp tools, lower speeds, and fine finishing passes can help achieve better results.
5. Heat Generation
Harder materials generate more heat during the milling process because of higher friction and resistance. This heat can affect the material’s properties and reduce tool life. Proper coolant application or the use of dry machining techniques is essential to manage heat effectively.
6. Machining Time and Costs
Material hardness directly influences the time and cost of machining operations:
– Soft Materials: Easier to machine, resulting in shorter cycle times and lower costs.
– Hard Materials: Require more careful and precise machining, leading to longer cycle times and higher production costs.
Tips for Milling Materials with Different Hardness Levels
For Soft Materials:
Tool selection:
Sharp edges: Choose tools with sharp cutting edges and positive rake angles to minimize cutting forces and prevent material tearing.
Appropriate material: Opt for high-speed steel (HSS) or carbide tooling depending on the specific soft material and desired finish.
Flute design: Consider using multiple flutes for better chip evacuation, especially in softer materials.
Cutting parameters:
High cutting speed: Run at a relatively high cutting speed to reduce the risk of built-up edge formation on the tool.
Low feed rate: Use a lower feed rate to prevent excessive chip removal and maintain good surface quality.
Light depth of cut: Take smaller depths of cut to minimize heat generation and tool wear.
For Medium-Hard Materials:
Tool Selection:
Carbide tooling: Choose high-quality carbide inserts with coatings designed for hard materials, considering aspects like rake angle, helix angle, and flute count based on the material and desired finish.
Negative rake angles: Opt for negative rake angles to provide better chip control and stability when machining hard materials.
Sharp cutting edges: Ensure tools are properly sharpened to minimize heat generation and wear.
Cutting Parameters:
Low chip load:
Maintain a consistent and relatively low chip load to prevent excessive heat buildup and tool wear.
Optimized cutting speed:
Adjust cutting speed based on the material and tool combination, aiming for a balance between efficient material removal and tool life.
High feed rate:
Where possible, use higher feed rates to improve surface finish and chip removal.
For Hard Materials:
Tool selection:
High-quality carbide inserts: Choose carbide inserts with strong geometries like button or T-land designs, and select a grade specifically designed for hard materials with high heat resistance.
Coating: Opt for coatings like TiN, TiAlN, or CBN (cubic boron nitride) for improved wear resistance and heat dissipation.
Multiple flutes: Use end mills with a higher number of flutes (4-8) for better chip evacuation.
Negative rake angle: Negative rake angles help resist chipping and improve tool life when machining hard materials.
Cutting parameters:
Light cuts: Use small depths of cut and reduced width of cut (typically 25-40% of tool diameter) to minimize heat generation.
Low feed per tooth: Maintain a low feed rate to prevent excessive stress on the cutting edge.
High spindle speed: Employ higher spindle speeds where appropriate to improve chip removal.
Applications of CNC Milling for Materials of Various Hardness Levels
– Soft Materials: Aluminum is widely used in aerospace, automotive, and consumer goods industries for its lightweight properties and machinability.
– Medium-Hard Materials: Titanium is common in medical implants and aerospace components, where strength and weight ratio are critical.
– Hard Materials: Hardened steels are used in toolmaking, automotive components, and heavy machinery, where durability and wear resistance are required.
Conclusion
Material hardness is a critical factor in CNC milling operations that affects everything from tool selection to machining parameters and final part quality. Understanding how hardness influences the process allows manufacturers to optimize their operations, reduce tool wear, and achieve consistent results. By tailoring tools, speeds, and feeds to the specific material hardness, CNC milling can deliver precision components for a wide range of industries and applications. Whether machining soft aluminum or tough hardened steel, careful planning and execution are key to success in CNC milling.
